Maurice HATELY // Fathi KABBARY

Crossed Field Antenna







http://www.antennex.com/preview/cfa/cfa.htm
antenneX Online Magazine)


Google Search Results


http://www.antennex.com/preview/cfa/nab99cfa.htm

Kabbary, et L.: Four Egyptian MW Broadcast Crossed-Field Antennas


http://www.rwonline.com
Radio World (March 31, 1999)
"Is This AM Antenna for Real ?"
Engineers Wonder if the Crossed-Field Antenna Could Revolutionize the Science of AM Radio Transmission

by

W. C. Alexander

Imagine an AM antenna one-fiftieth of a wavelength long, that needs no radial ground system, occupies a small parcel of land, produces little or no RFI (Radio Frequency Interference), has great bandwidth and performs better than a full-sized vertical radiator.

Does this sound like a fantasy?

Until recently, it would have been.

Now working models of such an antenna exist in the Middle East and at NAB99 (National Association of Broadcasters' 1999 Convention in Las Vegas).

( The "reversed form" (negative solution) of Maxwell's Fourth Equation, states that a magnetic field can be produced without current flowing in a wire.)

On April 19, 1999, at the Las Vegas Convention Center, Brian Steward from the Department of Engineering at Glasgow Caledonian University presented a paper on what has been patented as the Crossed-Field Antenna.

Synthesized field

Most of us have known since early in our electronics training that any conductor in which a radio frequency current flows can be an antenna.

When an Radio Frequency current flows in a conductor, an electric (or E) field and a magnetic (or H) field are produced. These two fields are in quadrature (Their amplitude phases are 90 from each other.) with one another, and at some distance, presumably { (increment) / 2 pi } combine into an electromagnetic field, which is the desired element. A conventional antenna, be it a dipole, a vertical radiator over a ground plane, a long wire or anything else, works on this principle.

More than a decade ago, Maurice Hately, a college professor in Scotland, along with his then-student, Fathl Kabbary, began work on a completely different antenna design. The basic premise of this radical design is that a magnetic field can be produced without current flow in a wire. Hately and Kabbary claim that using the reversed (negative solution) form of Maxwell's fourth equation, they were able to prove that a magnetic field does exist between two capacitor plates to which a Radio Frequency voltage has been applied.

From this beginning Hately and Kabbary report they were able to produce direct synthesis of the electromagnetic field using two large capacitor plates and two large cylinders of short length. The capacitor plates, called "D plates" for the term "D" in the Poynting theorem, were positioned parallel to one another to form a capacitor. The cylinders, called "E plates" were positioned one above and one below the D plates. When the cylinders were driven by a radio frequency power source, they produced high-frequency E-fields, thus the designation "E plates".

Crossing effect

To synthesize the electromagnetic wave, radio frequency power is fed through a power divider / phasing network to the D and E plates. The resulting electric and magnetic fields are cross-stressed in phase to synthesize the Poynting vector and produce radiated power within the small area surrounding the antenna. This effect is what gives the Crossed-Field Antenna (CFA) its name.

Several variations of the Crossed-Field Antenna were developed and tested. The barrel-shaped CFA was first: it featured the same radiation pattern as a dipole. The next evolution removed one of the cylinders and one of the plates, substituting a ground plane instead.

Later, Kabbary returned to his native Egypt and continued experimenting with a ground plane antenna for broadcast. He successfully built and tested a couple of different configurations, settling on a design only 12-feet high over a ground plane of only 10 square meters. He has documented the successful testing of this antenna on 1161 kHz at a power level of 60 kW.

In 1995, Kabbary made some radical design changes to the antenna, adding a funnel-shaped top (see photo). This design reportedly produced the same inverse distance field with 30 kW as the conventional one-quarter wavelength vertical it was intended to replace produced with 100 kW. The funnel-top CFA based in Egypt is only 21 feet tall, less than 0.025 wavelengths long. The vertical antenna it replaced was 211 feet long. Test results show up to a 9 dB (800%) advantage over the one-quarter wavelength vertical antenna.

Reported advantages of the CFA over conventional radiators include: Very small size, typically around a one-fiftieth wavelength; High efficiency, with a 6 dB (400%) gain typical relative to a conventional one-quarter wavelength vertical radiator; Little induction field, which produces very little coupling between adjacent antennas; Broad bandwidth.

Today, four such antennas are reported on the air and operating in broadcast service in Egypt. Two are at Tanta, operating from a rooftop at 22 kW and 100 kW respectively and separated by less than 20 feet. One is in operation at Barnis at 110 kW and the other operates in Halaieb at 5 kW.

If the Crossed-Field Antenna proves to be everything the inventors claim, it could revolutionize the state-of-the-art in AM transmission systems, which has changed little since the days of Marconi.

The paper is part of the session "Radio Transmission Systems --- Digital and Analog" (1-5 p.m. Monday, April 19, at the Las Vegas Convention Center).

Patent 2,215,524 was issued in Great Briton, 626,210 in Australia and others issued in Europe and Japan. In 1992 the U.S. issued Patent Number 5,155,495.

Cris Alexander is director of engineering for Crawford Broadcasting and a regular contributor to "Radio World".

Radio World (June 21, 2000) ~
"How to Build a 75 / 80 Meter CFA"

Antenna Science

The final paper of the session featured Manohar Lal, chief engineer of "All India Radio", New Delhi India.

Lal presented theoretical details of a new concept antenna, which produces high efficiency and high gain with small dimensions. The concept is derived from the modification of Maxwell's displacement current.

In the 1860s, James Maxwell formulated the equations upon which the laws of electromagnetic radiation are based. Lal states in his paper that Maxwell identified a displacement current from the extrapolation of Ampere's law. It was merely a charging current such as that which exists between the plates of a capacitor and did not radiate a magnetic field. Its current was uniform in the whole area between the plates.

Lal suggests that this displacement current can be modified to flow only at the periphery of the plates and thereby produce a magnetic field around it.

He claims to have tested the hypothesis and can launch a signal with gain, bandwidth and directivity properties, which could revolutionize the science of building antennas.

Tom McGinley is a 35-year veteran of radio engineering. He is employed by Infinity Broadcasting, for which he recently assumed managerial duties in the Seattle market. He is technical adviser to Radio World.



US Patent # 5,155,495

Radio Antennas

( US Cl. 343/725 ~ Intl Cl. H01Q 021/00 )

Maurice Hately & Fathi Kabbary

Abstract -- An antenna for a wide bandwidth electromagnetic field polarized in a predetermined direction at right angles to the field propagation direction includes plural metal elements that are not resonant in the bandwidth. The metal elements are excited to transduce an electric field in the polarization direction over the bandwidth range. The plural elements have an extent in the polarization direction no greater than an order of magnitude of the shortest wave length in the bandwidth. A structure between the element, which may be either a coil or parallel electrodes which derive a displacement current, transduces a magnetic field having lines of flux at right angles to the polarization and propagation directions. The electric and magnetic fields are excited by power from the same source with phases so that in an interaction region of the field between a pair of the metal elements there is E.times.H synchronism and a radiation Poynting vector having rotational E and H fields to transduce the electromagnetic field.

Foreign Application Priority Data
Feb 02, 1988[GB] ~ 8802204

References Cited:
U.S. Patent Documents
3521284 ~ Jul., 1970 ~ Shelton, Jr. ~ 343/727
4809009 ~ Feb., 1989 ~ Grimes et al. ~ 343/726

Foreign Patent Documents
453660 ~ Dec., 1948 ~ CA ~ 343/726
492418 ~ Apr., 1953 ~ CA ~ 343/726

Claims ~
We claim: [ Claims not included here ]

Description ~
FIELD OF THE INVENTION

This invention relates to antennas for the transmission and reception of radio waves for telecommunications, broadcasting sound and television, radar, satellite communications and the like.

Known antennas usually have a single feeder connected to either a single conductor element of approximately half a wavelength, or to a single driven element within a group of parasitic elements as in the Yagi-Uda array. By means of added reactive components such as inductors, end capacitors, resonant traps and such, antennas have been constructed with somewhat smaller dimensions than the basic half wavelength element. Loop antennas are also known and are useful in direction finding. However most antennas of reduced dimensions have disappointing transmission efficiency due to the necessarily increased circulation currents which cause large conductor losses and or magnetic core losses.

BACKGROUND ART
The Poynting Theorem states that for any superimposed electric and magnetic fields there must be energy flowing in the medium and thus the phenomenon of radio wave propagation has been explained in the presently accepted theory as the radiation of electromagnetic energy in the form of an electric field E and a magnetic field H in a cross-product Poynting vector E.times.H=S watts per meter squared. The perpendicular geometric relationship and the time synchronism implied by the above formula must be produced by any antenna which is to radiate efficiently. Presently known antennas are probably achieving the requirements in an uncontrolled or accidental manner.

Due to extended physical dimensions and high location above the ground, it is probable that there is fortuitously provided in the large volume of space a means of setting the necessary perpendicularity and simultaneity as well as a degree of rotationality for the fields, although the absence of these conjectures from the present texts ought not to be used to condemn the validity of the concept. From the large surrounding and lightly stressed volume the comparatively weak Poynting vector progresses outwards to infinity.

THE INVENTION
In accordance with one aspect of the invention a radio antenna in which electromagnetic waves are radiated from a small volume comprises two first and second separate element systems respectively excited for producing high frequency electric and magnetic fields. Separate feeder means drives each of the element systems. Each of the element systems is positioned in adjacent interactive relationship to cross stress a common interaction zone of both fields to create a source from which electromagnetic waves radiate. The element system in which the electric field is originated establishes a radio frequency potential difference across an interaction zone between two conducting surfaces. The element system for establishing the magnetic field includes two other conducting surfaces for establishing an intense radio frequency displacement current. A radio frequency potential difference of the same frequency is applied between two of the conducting surfaces for establishing an intense circulating magnetic field to cross the interaction zone.

In a preferred embodiment a phasing unit splits an output of a radio transmitter into two parts having separate delay arrangements to produce synchronized electric and magnetic fields at the interaction zone. The phasing unit preferably includes fixed and variable phase delay circuits and at least one tapped transformer and a switch for adjusting each part of the output of the radio transmitter. The phasing unit also preferably has a wideband constant phase different circuit for low power operation for driving either of the separate units. Two separate power amplifiers develop sufficient power to provide separate feeds to the two separate element systems of the antenna so that within the interaction zone radio wave power is synthesized.

In another embodiment a single feeder is connected to one element system and a second feeder drives the other element system with a phase and magnitude to synthesize a radio frequency wave at a predetermined frequency band.

In another embodiment, the two separate element systems are constructed as half structures with a conducting surface of sufficient area that the other half structure is defined by a virtual image thereof.

In accordance with a further aspect of the invention, an antenna comprises a first set of at least two spaced elements defining surface lying an end to end relationship with each other. Radio frequency power is fed to the set of elements for producing an E-field between the set of elements. A second set of at least two spaced elements defines surfaces in face to face parallel planes. Radio frequency power produces a displacement current between the second set of spaced elements establishes an H field around the second set. The first and second spaced elements and means for feeding the radio frequency power are arranged so there is interactive coupling between the E and H fields to produce a propagating electromagnetic radio wave.

In accordance with one embodiment the surfaces of the second set of elements are positioned between the surfaces of said first set of elements and perpendicular thereto. In one arrangement, the first set of elements comprises parallel circular plates. In another arrangement the first set of elements comprises plates and the second set of elements comprises parallel plates.

In one embodiment one of the fields is produced by a feed including a coaxial feeder cable coupled through a transformer including a ferrite toroidal core. The first and second sets of elements are preferably secured and spaced by electrically insulating support members. A ground-plane structure may be provided wherein one of each of the spaced set of elements is constituted by a virtual image of the other element on the other side of a ground plane element electrically bisecting the antenna.

In accordance with a further aspect of the invention, an antenna for wide bandwidth electromagnetic field polarized in a predetermined position at right angles to the field propagation direction comprises plural metal first elements that are not resonant in the bandwidth. The first elements are excited to transduce an electric field in the polarization direction over the bandwidth and have an extent in the polarization direction no greater than an order of magnitude less than the shortest wavelength in the wide bandwidth range. Means between the elements transduces a magnetic field having lines of flux between the elements at right angles to the polarization and propagation directions. The elements and means are arranged and the electric and magnetic fields are excited by power from the same source with phases so there is an interaction region of the fields between a pair of the metal elements to provide E.times.H synchronism and a radiation Poynting vector having rotational E and H fields to transduce the electromagnetic field. The elements include first and second metal plates having spaced planar faces substantially at right angles to the electric field. The plates are excited with voltages displaced in phase by 180.degree. so the electric field is established between said planar faces. A coil disposed between the plates has windings positioned to excite the lines of flux. The coil is excited with current from the same source which excites the plates with a current displaced in phase by 90.degree. relative to the voltages which excite the plates.

In one embodiment, the faces of the plates diverge from a central region where the coil is located so curved electric field lines extend between the plates.

In another embodiment, the elements include first, second, third and fourth metal plates having spaced planar faces substantially at right angles to the electric field. The first and second plates are excited with a first voltage having the same phase while the third and fourth plates are excited with a second voltage having the same phase. The first and second voltages are from the same source and displaced in phase from each other by 180.degree.. A coil disposed between the plates has windings positioned to excite the lines of flux. The coil is excited with current from the same source which excites the plates with a current displaced in phase by 90.degree. relative to the voltages which excite the plates. Preferably, the faces of the plates diverge from a central region where the coil is located so curved electric field lines extend between the first and third plates and between the second and fourth plates.

In a further embodiment, at least one of the metal elements has a first surface extending (a) in substantially the same direction as the electric field, (b) at substantially right angles to the magnetic lines of flux and (c) at substantially right angles to the propagation direction so the electric field is curved as it propagates from the first surface to a second surface of another of the metal elements. The elements including the first and second surfaces are excited with voltages from the same source that are displaced 180.degree. from each other. Preferably, the another element including the second surface is configured so the first and second surfaces extend in substantially the same direction. In one embodiment the first and second surfaces are substantially planar and substantially aligned. In a second embodiment the first and second surfaces are cylindrical and have substantially the same radii and substantially common axes. The another second element may be a planar surface extending in a plane substantially parallel to the propagation direction. In this case, the first surface is cylindrical and the first surface has an axis substantially at right angles to the plane of the second element. In the further embodiment, the magnetic field is transduced by a coil disposed between the elements and having windings positioned to excite the lines of flux. The coil is excited with current from the same source which excites the elements with a current displaced in phase by 90.degree. relative to the voltages which excite the elements. In this arrangement the another element is configurated so the first and second surfaces extend in substantially the same direction and the first and second surfaces are preferably substantially planar and substantially aligned.

In still another embodiment the magnetic field is transduced by a capacitor having first and second substantially parallel planar electrodes extending substantially in the direction of propagation and substantially at right angles to the electric field lines. The electrodes are excited so voltages phase displaced from each other by 180.degree. are applied to the first and second electrodes so a displacement current correlated with the magnetic field subsists. In this arrangement, preferably at least one of the metal elements has a first surface extending (a) in substantially the same direction as the electric field, (b) substantially at right angles to the magnetic lines of flux and (c) substantially at right angles to the propagation direction so the electric field is curved as it propagates from the first surface to a second surface of another of the metal elements. The elements are excited by a means including the first and second surfaces with voltages from the same source that are displaced 180.degree. from each other. The another element is preferably configured so the first and second surfaces extend in substantially the same direction and the first and second surfaces are substantially planar and substantially aligned.

The first and second surfaces are cylindrical in still another arrangement wherein the first and second surfaces have substantially the same radii and substantially common axes. The second element may include a planar surface that extends in a plane substantially parallel to the propagation direction, in which case the second element preferably includes the second electrode. A first cable includes a first feed line extending through a central aperture of the first electrode. The first line is connected to the first element and a second line connected to the second element. A second cable including third and fourth lines is connected to terminals of a primary winding of a transformer having a secondary winding having opposite terminals respectively connected to the first electrode and the second element. The cables may be coaxial so the first and third lines are respectively center conductors of the first and second cables and the second and fourth lines are respectively shields of the first and second cables.

The invention is further described and illustrated with reference to the accompanying drawings, showing embodiment by way of examples.

BRIEF DESCRIPTION OF THE DRAWINGS
FIG. 1 is a schematic plan view of an embodiment with a horizontal coil,

FIG. 2 is a schematic elevation view of the embodiment of FIG. 1,

FIG. 3 is a circuit diagram for phasing unit for feeding an antenna according to the invention,

FIG. 4 is a circuit diagram of a further feeder unit,

FIG. 5 is a schematic perspective view of another embodiment for radiating of vertically polarized waves,

FIG. 6 is a schematic perspective view of a further embodiment using capacitive effect to produce the magnetic field,

FIG. 7 is a schematic perspective view of an embodiment similar to FIG. 6 using cylindrical elements.

FIG. 8 is a schematic perspective view of an embodiment forming a ground plane construction, and

FIG. 9 is a schematic perspective view of the feed arrangement for an antenna similar to that shown in FIG. 8.

DESCRIPTION OF THE PREFERRED EMBODIMENTS

FIG. 1 is a plan view of an elementary form of a twin feeder crossed field antenna according to this invention. The horizontal coil 1 is fed by feeder 2 via matching and isolating transformer 3 and carries a radio frequency current shown by arrows indicating an anticlockwise maximum in the cycle time. Thus upwardly directed in the center of the coil there is high magnetic field density H from J+D'=.gradient.XH which returns downwards all around the periphery of the coil. There are two pairs of conducting plates 4 and 5, 6 and 7, with planes standing vertically which are insulated from everything else but are fed with antiphase voltage of the same frequency in pairs as shown, by power in feeder 8 via matching and isolating transformer 9. At the same instant in the cycle the plate pair 4 and 5 are electrically positive relative to the plate pair 6 and 7. Thus due to the very small dimension of the whole antenna, the propagation delay across the interaction zones marked X and Y is negligible and so the correct simultaneity, orthogonality and rotationality exists and Poynting vector synthesis occurs and radio power radiates away with the velocity of light in the directions marked S.

FIG. 2 is a diagram of the same antenna in elevation.

Detailed consideration of the phase requirement may be deduced as follows. Sinusoidal carrier waves are being applied and electric field E is in phase with the voltage across the plate pairs. The retardation due to size is negligible as is the magnetic field retardation around the coil. Thus the field H is in synchronism with the current causing it, that is the magnetic field is in phase with the current. Current in a coil is however always lagging by about 90.degree. relative to the voltage across the coil due to self inductance. So, in order to obtain phase synchronism of the fields interacting in the crossed field antenna, the feed voltage to the coil needs to be approximately 90.degree. advanced on the feed voltage between the electrical plates. If both transformers have identical phase characteristics, the signal to feeder 2 must to be phase advanced by 90.degree. compared with the voltage supplied to feeder 8. Cable lengths are only significant if different, so for a single frequency application an electrical quarter wavelength extra in feeder 8 would fulfil the phase requirement. By providing a power divider so that a single transmitter supplies approximately half the power to each of the twin feeders, the interaction zone radiates the total power in the synthesised Poynting vector An antenna for general radio communications requiring many operational frequency changes must to have a phase adjusting unit.

FIG. 3 is a circuit diagram of a simple phasing unit with which the said phase adjustment could be provided The transmitter power is split partly into the upper capacitive path and partly into the lower inductive path. Setting the capacitor 10 to some value will give 45.degree. advance; setting the inductor to another value will result in a corresponding 45.degree. delay which will ensure that after stimulating the two fields the radio wave will be correctly synthesised in the interaction zones.

FIG. 4 shows a more sophisticated form of phasing unit which will provide phasing for any kind of twin feeder crossed field antenna under almost any circumstances over a wide frequency range. A switched auto transformer 12 is connected to feeder output 88 and is preceded by phase adjustment arrangements switchable into either sense by switch 14, of which coarse settings are provided by the dual gang switch 13A, 13B and a selection of cable lengths 15, and a fine adjustment by the variable capacitor 16.

A more complex phase adjustment system, (not shown) would have a series of two-pole change-over switches able to connect any total combination of delay cables selected from a sequence of lengths incremented in a 1/8, 1/4, 1/2, 1, 2, 4, 8, 16, 32 metersystem. Such a scheme would allow a user to correct the phase of the feed to a crossed field antenna such that a single device could be radiating successfully at any frequency in the whole HF spectrum.

In a further preferred arrangement the phasing unit has a wideband constant phase difference circuit for low power operation and followed, either inside the unit or outside as two separate units, by two separate power amplifiers which develop sufficient power to provide separate feeds to the two electrode systems of the antenna so that within the interaction zone sufficient radio wave power is synthesised.

An alternative twin feeder crossed field antenna which will radiate vertically polarized waves instead of horizontal, is shown in FIG. 5. The antenna consists of a narrow vertical coil 17 fed from cable 2C via matching transformer 18, and two conducting plates 19 and 20 fed by feeder 8C via matching and isolating transformer 21. A widespread electric field E is created in arcs from the top plate to the lower plate and produces a cross-product with the magnetic field H rotating in the directions indicated and thus synthesises intense Poynting vectors S which radiate outwards in broad azimuthal angles to space. The said antenna having several advantageous features namely a reduced number of components and also a larger interaction volume than has the first type according to FIGS. 1 and 2. The first feature reduces costs and simplifies the structure. The second advantage gives enhanced signal voltages when used in the receive mode. Furthermore, since any one of the four input terminals (two plates and two coil terminals) may be connected to earth it will be optimal to have the lower plate earthed for safety as well as providing an opportunity to bond the screens of the coaxial feeders thereto.

It is possible for transformer 21 to be dispensed with, and direct feed from the inner conductor of feeder 8C to be connected to the upper plate 19 with the screen remaining connected to plate 20.

As a further development of the twin feeder crossed field antenna types which use a coil to generate the magnetic field, a further arrangement is proposed called the Maxwell type, in which the magnetic field is produced from an electric field displacement current located within a capacitor. It is an arrangement which has many advantages theoretically and practically, and allows the construction of a truly omnidirectional vertically polarised antenna. Examination of the Maxwell law D'=.gradient.XH where D'=.delta.D/.delta.t shows that a changing displacement field causes a rotational magnetic field. As the displacement current density is simply related in space (or in air) by the formula D'=.epsilon.E' where E is the electric field intensity and .epsilon. is the dielectric constant, it is easy to calculate that this will be a very useful technique for HF crossed field antennas of small size. Also it can be seen that as before, the S= E.times.H relationship of the Poynting vector demands geometric perpendicularity synchronism and rotational form to both fields The differentiation with respect to time within the Maxwell law again inserts a 90.degree. phase change but in this type it is of the opposite sign. There is a 90.degree. advance of magnetic field relative to the voltage gradient and so there must be a 90.degree. delay in the voltage fed to the plates of the said capacitor. The Maxwell type of crossed field antenna requires two separate electric field stimulator plates; one pair as in the first type to initiate the E field, and the other pair to initiate the magnetic field by the Maxwell law The second pair are called therefore, the D plates. In total there are four phases of electric potential within the antenna structure: 0.degree. and 180.degree. of the E plates; 90.degree. and 270.degree. of the D plates

FIG. 6 is a diagram of a basic form of the Maxwell type of twin feeder crossed field antenna. Two flat plates 22 and 23, standing vertically are insulated from other electrodes and ground and are fed by coaxial cable 26 via matching and isolating transformer 27, thereby producing the electric field E shown in the downwards phase. Two insulated flat elliptical plates 24 and 25, disposed horizontally are also insulated from earth and other electrodes and constitute the capacitor within which a large displacement current density D' is produced by radio frequency power arriving from feeder 28 via matching and isolating transformer 29. The rapidly changing displacement current is then the origin of the considerably curved H around the whole antenna in the direction shown. In the wide interaction zones at mid height, in front of and behind the structure, copious field crossing is present and so considerable Poynting vector power density is generated and radio waves propagate away at the velocity of light in the directions shown S. The waves are vertically polarised; the horizontal polar diagram is a figure of eight. The lower plate may be earthed and the screens of the coaxial feeders bonded to it. The transformer 27 may be dispensed with and a direct connection made between the inner of the feeder 26 and the plate 23.

Many variants of the Maxwell type are conceivable and they constitute a generic family of twin feeder crossed field antennas disclosed herein. For instance the form described in FIG. 6 could be turned through 90.degree. and it will then generate horizontally polarised waves and have a radiation polar diagram which is a figure of eight in the horizontal plane.

Two further antennas of this family will b described as they are important in having a robust structural shape as well as a vertically polarised omnidirectional radiation which is often required in broadcasting and communicating to mobiles

FIG. 7 is a diagram of the cylindrical form of Maxwell type crossed field antenna. The downwards electric field E is initiated by voltage between the hollow cylindrical conducting electrodes 30 and 31 which are fed from feeder via matching transformer 33 The lower cylinder may stand safely on the ground or could be formed as a flat plate on site. The displacement current D' is stimulated upwards at the same time in the cycle by feeding the appropriate phase voltage between the two horizontal disc conductors 34 and 35 (having their central area removed for space to mount transformers, feeders etc.) using feeder 36 via matching and isolating transformer 37. Should there be a requirement to reduce weight or wind resistance, the said electrodes and conductors may be made with alternative materials such as conducting wire mesh, or a conducting surface applied to a plastics or other non-conducting structural component.

FIG. 8 is a diagram of a ground plane (or half symmetry) form of the cylindrical twin feeder crossed field antenna of the Maxwell type. The downwards electric field E is produced by applying a voltage between the hollow conducting cylinder 37 and the large conducting earth plane 38 with the upwards displacement current D' from the said earth plane to the circular conducting plate 39 with a central missing area marked 39a in order to create the required rotational magnetic field H to interact with the said E field and synthesise the Poynting vector S radiating all round to space.

In a practical construction for the frequency range 3.6 to 30 MHz, the cylinder 37 has a height of 25 cm and a diameter of 20 cm with the base spaced 10 cm from the plate 39. Plate 39 has a diameter of 40 cm and is positioned coplanar to and 5 cm distance from plane 38. The parts may be mechanically connected by insulating pillars or foamed plastics blocks.

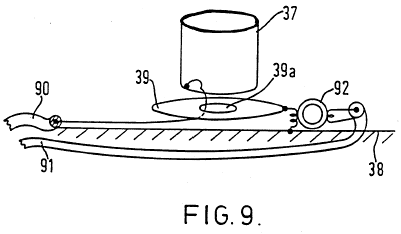

The feed arrangement is shown in FIG. 9 and this has the E-field feeder 90 connected between ground plane 38 and cylinder 37 and the H-field feeder 91 terminating in toroidal ferrite coupling transformer 92 feeding between ground plane 38 and plate 39. It is important that the outer conductor of feeder 91 is not electrically connected with any part of the structure.

For weatherproofing the structure may be encased for protection but in a preferred embodiment a louvred or apertured screen is used in conjunction with a top cover to provide air through flow.

Twin feeder crossed field antennas of the above forms or other forms may be made almost as small as desired. With correct time phasing, the power radiated from the interaction zones can be made as large as desired and is limited only by the necessary voltages at the electrodes and the ultimate possibility of corona discharge. However since the plates are large in area compared with the surface areas for wire antennas the problem is of comparative insignificance. Antennas of these types only 1/200 th of a wavelength in length (and less in diameter) have been able to radiate 400 watts on HF with no perceptible problems of electrode distress Calculations show that for the magnitudes of voltage used in wire antennas, teraWatt capabilities will be possible with crossed field antennas. There are no large circulating currents in any conductor since nothing is in resonance. It is a major advantage of the twin feeder crossed field antenna system that it is broadband, and low Q. For any given antenna radiating efficiently because it is correctly phased, the bandwidth is very broad, firstly because of the phase-sense of frequency change acting by the Maxwell Law is the same sense as change due to a wave on the delay cable, secondly because the two fields are both originated from capacitor stimulus and also change in the same phase sense, thirdly the two fields interact in such a way as to provide a lower input impedance in each capacitor and therefore self-optimise the synthesis. Thus an antenna which is say 1/400 th of a wavelength height may be expected to have a small depreciation of efficiency by a frequency change of about plus and minus 15%.

Many of the electrical properties of the system described are not critical. For instance the adjustments needed in the phasing unit to produce a low VSWR in the common feeder leading will be found in practice to be self-optimising. The magnetic field generated around the displacement current capacitor is in the direction of curvature to reduce the impedance experienced by the electric field generator since the synthesised Poynting vector takes away power from the radio wave continuously, and at no part of the cycle does the E field find its path as impedant as normal space; it is always presented to the field lines as a power sink as long as the magnetic field H is synchronous For the same reasons, the H field lines flow into a low reluctance interaction zone of a similar power sinking nature due to the cross-curved E field in phase at all times. Only in the unproductive zones around the antenna do the fields experience the normal path impedance and reluctances. The crossed field antenna system is almost an efficient "open frequency" antenna It will also receive radio signals and so may be used in two way-radio systems.

In fact the new device is such a small sized source that many techniques not before possible are now within easy achievement. When used in a reflecting or phasing arrangement, the crossed field antenna allows perceptible directivity to be attained in either transmit or receive modes even when the waves concerned are much larger than the reflector or array diameter.

The radio antenna may be used to radiate or receive electromagnetic waves when mounted within or along with other conductors, or conducting surfaces in order to reflect, direct, focus or enhance the said radiation or fed with either constant phase related power in parts, or varying phase power in parts so that a shaped radiation pattern is produced by the array and may be directed in any desired direction or directions.

The invention also relates to the use of the antenna for radio communication through a medium comprising ground, water, air or space.
