Gregory
HODOWANEC
Rhysmonic Cosmology
Simple
GW Demo Unit
Circuit # 930
( 5-4-1990 )

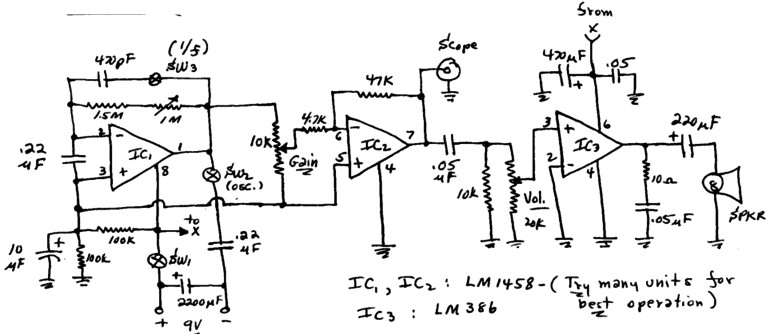

I. Circuit (Made in 2.5 x 1.5 x 5 inch box) --
II. Remarks
Unit will demonstrate:1. QND mode (Nova ‘bursts’ at different frequencies)
2. l/f noise (broadband ‘cosmic’ noise)
3. Oscillator mode (variable frequency)
4. Radar ‘pulse’ detection
5. Scope display of QND, l/f. and oscillator modes.
6. Single internal battery supply used.
