Gregory HODOWANEC
Rhysmonic Cosmology

'Local' Supercluster GW Detector
(8-20-1993)

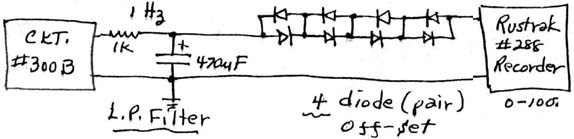

Figure (1): 'Local' Supercluster GW Detector
(a) Schematic Circuit #300-B;

(b) Remarks: tested ok in LP filter & offset diode chain
